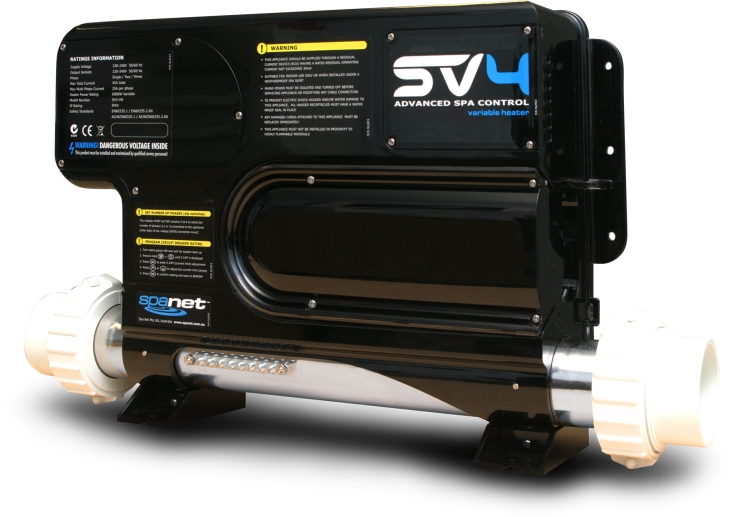

Spanet SV4 Variable Heat Controller

$1,683.00 inc GST

The SV4-VH is the ideal companion for your swim spa range, supporting up to 4 x jet pumps plus circ pump and air blower. The SV4-VH features a large 6kW Smart Variable Heater with Dynamic Thermal Tuning, a complete heat pump interface for cost effective heating and cooling of your spa water, and a host of flexible configuration options.







SPECIFICATIONS



Power:



1 phase 230-240v AC



3 phase 400-415v AC



50/60Hz .



MAX total current 60amp or 25amp per phase







Dimensions:



Controller:



544x309x90mm  5kg







Outputs:



Heater: 6kw Variable



Light x 2 (needs to be a Spanet LED light)



Touch Pad socket: x 2



Circulation Pump: x1  (Adj 1-24 hour)



Ozone 😡 1



Air Blower:  x1 (Vari Spd)



Pump 1: 1 x 1 or 2speed pump



Pump 2: 1 x 1spd (If outlet Pump 1 has a 2speed pump fitted Pump 2 outlet can not be used)



Pump 3: 1 x 1 or 2spd pump



Pump 4: 1 x 1spd (If outlet Pump 3 has a 2speed pump fitted Pump 4 outlet can not be used)

10 in stock
